The company supports customized processing. as there are many types, specifications and models of seals, the marked price and inventory of products in the factory will change according to the actual situation. customers are requested to consult customer service before taking pictures of the products, confirm the price and the delivery date before placing orders. the orders will be subject to negotiation between the two parties.
Tc framework oil seal specification | Model | 15*25*5 | | Color | Black and brown, can also be customized color |
| Material | NBR | | Characteristics | Corrosion resistance, high temperature resistance, wear resistance |
| Price | USD0.029-USD0.032 | | Packing | Plastic bag packaging, a bag of 100, can also be packaged according to customer requirements |
The function of the skeleton oil seal is generally to isolate the parts in the transmission parts that need lubrication from the output parts so as not to let the lubricating oil leak. it is usually used for the rotary shaft and is a kind of rotary shaft lip seal. The framework acts as a reinforcing steel bar inside the concrete member and enables the oil seal to maintain its shape and tension. According to the skeleton type, it can be divided into inner skeleton oil seal, outer skeleton oil seal, and inner exposed skeleton oil seal. Skeleton oil seal is made of high quality nitrile rubber and steel plate, with stable quality and long service life. Widely used in automobile, motorcycle crankshafts, camshafts, differentials, shock absorbers, engines, axles, front and rear wheels, etc.
1. prevent sand, dust, water vapor, etc. from invading the bearing from outside;
2. limit the leakage of lubricating oil from the bearing. The requirement for oil seal is that the dimensions ( inner diameter, outer diameter and thickness ) should conform to the regulations. Proper elasticity is required to properly clamp the shaft and play a sealing role. Heat resistance, wear resistance, good strength, medium resistance ( oil or water, etc. ) and long service life.
When using oil seal reasonably, the following points should be paid attention to:
( 1 ) due to design and structural reasons, high-speed oil seals should be used for high-speed shafts and low-speed oil seals should be used for low-speed shafts. low-speed oil seals cannot be used for high-speed shafts, and vice versa.
( 2 ) when the ambient temperature is relatively high, polypropylene ester or silicon, fluorine and silicon fluorine rubber should be selected. And should try to reduce the oil temperature in the oil tank. Cold resistant rubber should be used when the service temperature is too low.
( 3 ) the oil seal with normal pressure has poor ability to withstand pressure. when the pressure is too high, the oil seal will deform. Pressure bearing rings or reinforced pressure seal should be used under the condition of excessive pressure.
( 4 ) the degree of eccentricity of the oil seal when installed and the shaft are too eccentric, the sealing performance will deteriorate, especially when the shaft speed is high. If the eccentricity is too large, the oil seal with " w" cross section can be used.
( 5 ) the surface finish of the shaft directly affects the service life of the oil seal, that is, the service life of the oil seal will be long if the shaft finish is high.
( 6 ) pay attention to a certain amount of lubricating oil at the lip of the oil seal.
( 7 ) special attention should be paid to prevent dust from entering the oil seal.
|
|

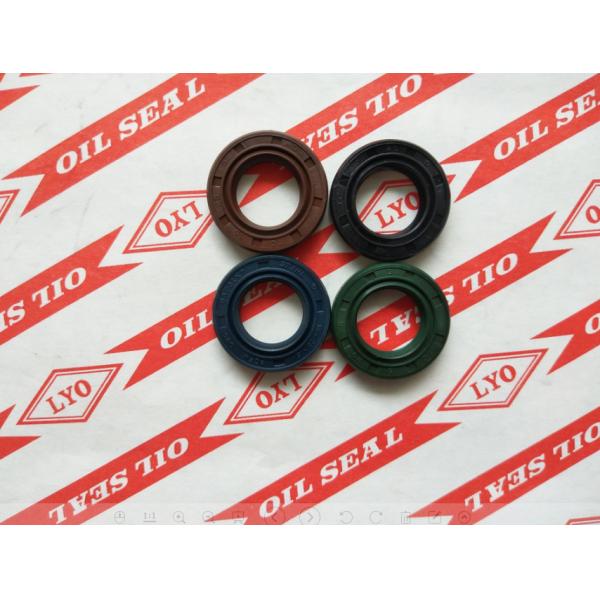

TC framework oil seal,model 15*25*5,NBR material,color is generally biack and brown. Images
|
